User Guide
![]() |
Setting / Sound Button |
Short press Sound on / off Long press (2–3 sec) Mode selection / Enter settings while paused |
![]() |
Start / Confirm Button |
Short press Start / Pause / Confirm setting Long press (2–3 sec) Restart |
![]() |
+ Button | Increase the flashing number |
![]() |
− Button | Decrease the flashing number |

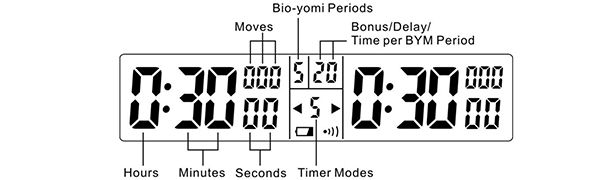

When powered on, the mode number is shown on the display. Use
/
to select a mode, then press
to confirm.
| No. | Mode | Description |
| 1 | Basic Timer | Simple count-up timer. No time limit setting. |
| 2 | Countdown (Sudden Death) |
Game ends when time runs out. |
| 3 | Bonus (Fischer) |
A set amount of time is added after each move. Bonus max 60 sec |
| 4 | Delay | A grace period is given at the start of each turn — the main clock does not count down until the grace period expires. Grace period max 60 sec |
| 5 | Byoyomi | After main time runs out, a countdown repeats each move. Max 9 periods / max 60 sec |
After selecting a mode, long-press the
Setting Button to enter the time setting screen.
/
to increase or decrease the flashing number.
Setting Button (short press) moves to the next setting item.
Start Button to complete the setup — you do not need to go through every item.
Start Button to begin.You can change the remaining time or settings during a game.
Start Button to pause.
Setting Button to enter settings.
Start Button to confirm changes and resume the game.
Start Button once more to resume the game.Long-press (2–3 sec)
Start Button to restart the game from the beginning with the same time settings and mode.
In addition to the display, the clock alerts you with buzzer sounds as time runs low.
| 10 seconds remaining | "Beep" (single short tone) |
| 5 seconds remaining | "Beep" (single short tone) |
| 2 seconds remaining | "Beep" (single short tone) |
| Time's up | "Beep-beep-beep-beep..." (repeated alarm) |
/
to change the flashing mode number
.
shows 1, press
Start Button to select.
Start Button again to begin counting.
/
to change the flashing mode number
.
shows 2, press
Start Button to select.
Start Button again to begin counting.
Setting Button, then set hours, minutes and seconds in order. +/− to adjust numbers, Setting Button to move to next item. Press
Start Button when done.
/

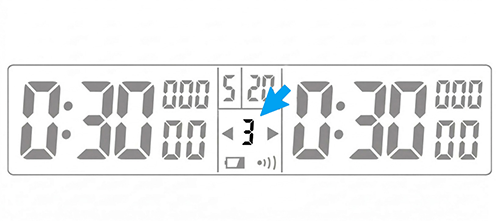

to change the flashing mode number
.
shows 3, press
Start Button to select.
Start Button again to begin counting.

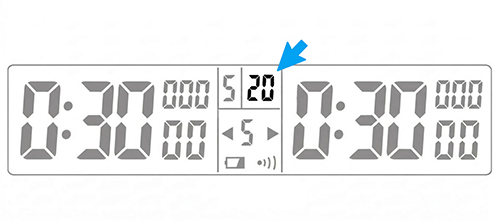

Setting Button, then set hours, minutes, seconds and bonus time
(max 60 sec) in order. +/− to adjust numbers,
Setting Button to move to next item. Press
Start Button when done.
/

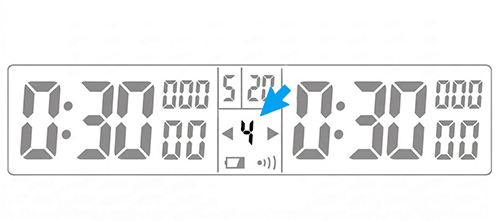

to change the flashing mode number
.
shows 4, press
Start Button to select.
Start Button again to begin counting.
Setting Button, then set hours, minutes, seconds and grace period
(max 60 sec) in order. +/− to adjust numbers,
Setting Button to move to next item. Press
Start Button when done.
/

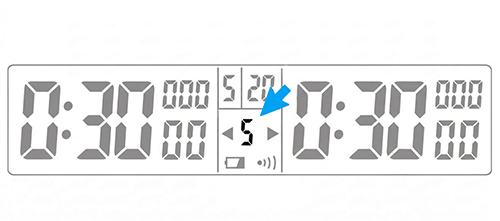

to change the flashing mode number
.
shows 5, press
Start Button to select.
Start Button again to begin counting.

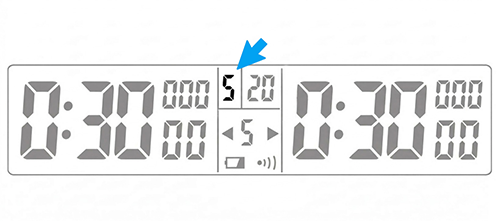

Setting Button, then set hours, minutes, seconds, byoyomi periods
(max 9) and byoyomi seconds
(max 60 sec) in order. +/− to adjust numbers,
Setting Button to move to next item. Press
Start Button when done.
